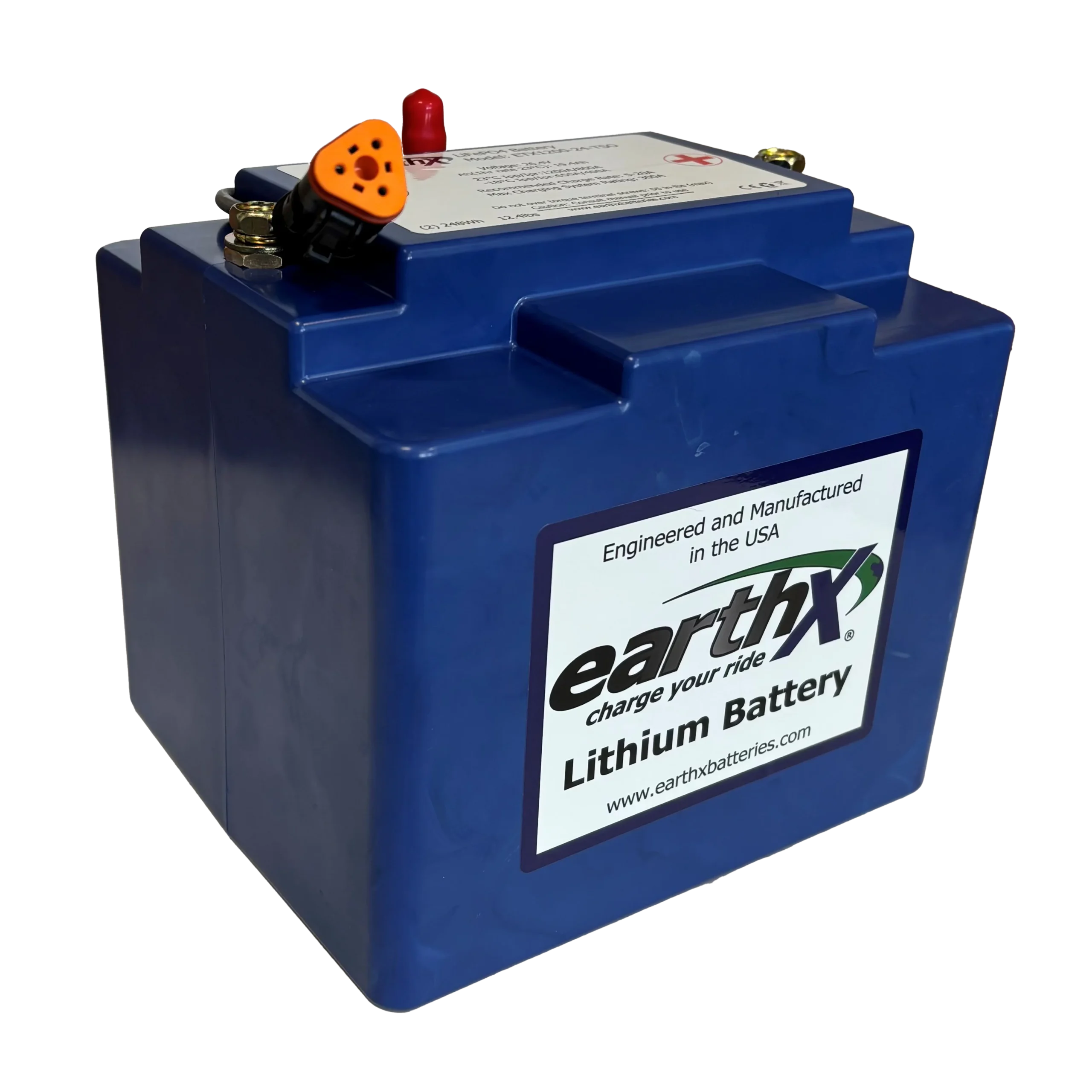

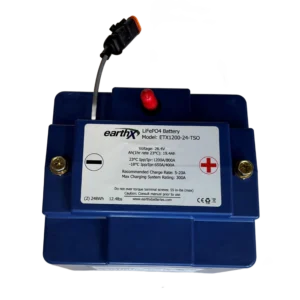

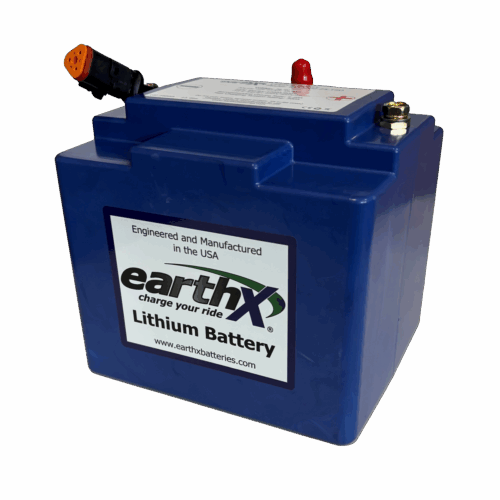

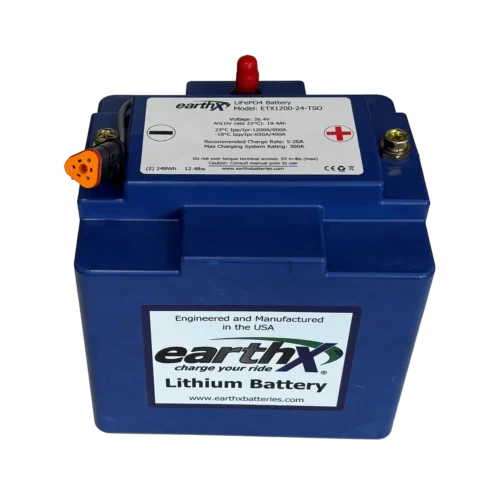

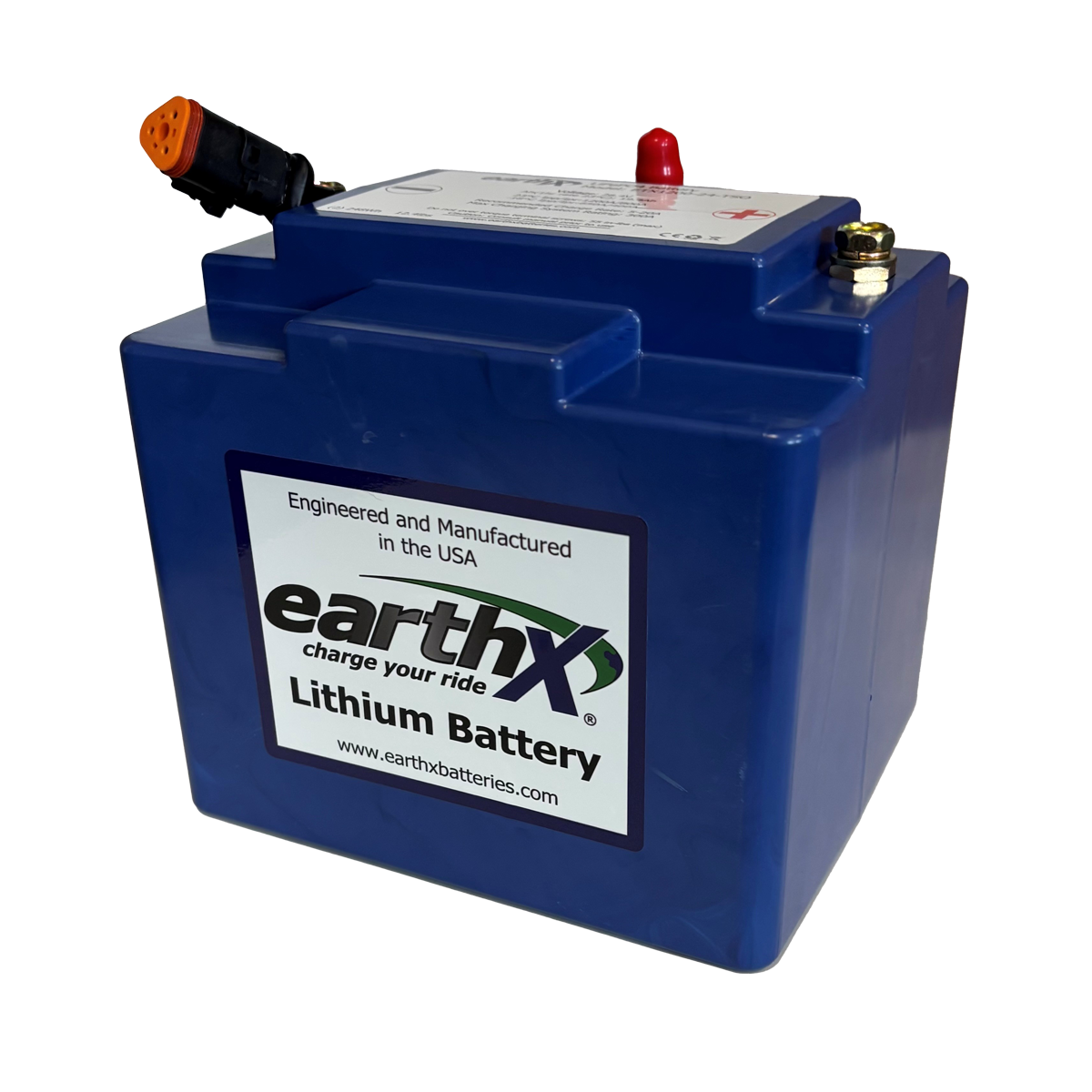

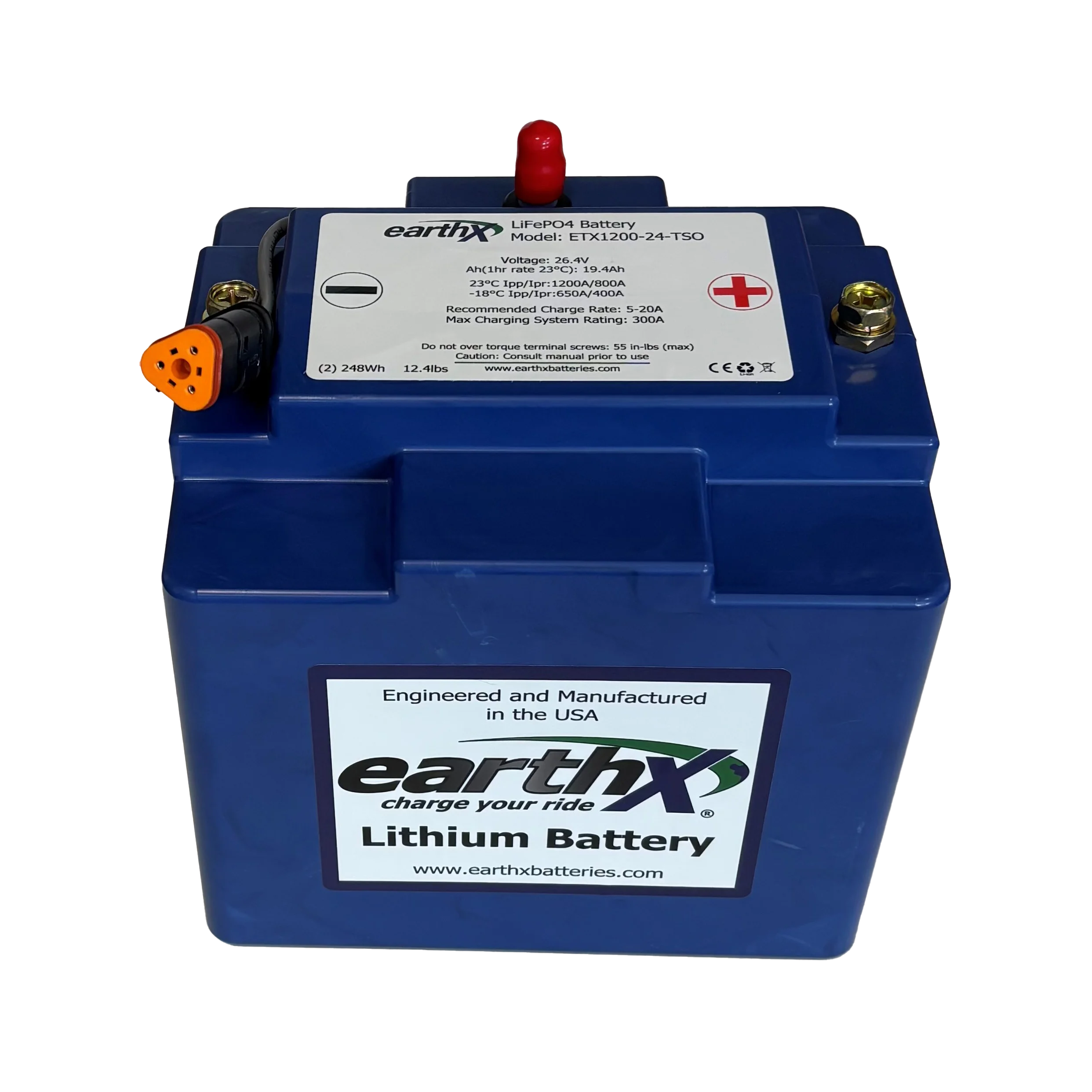

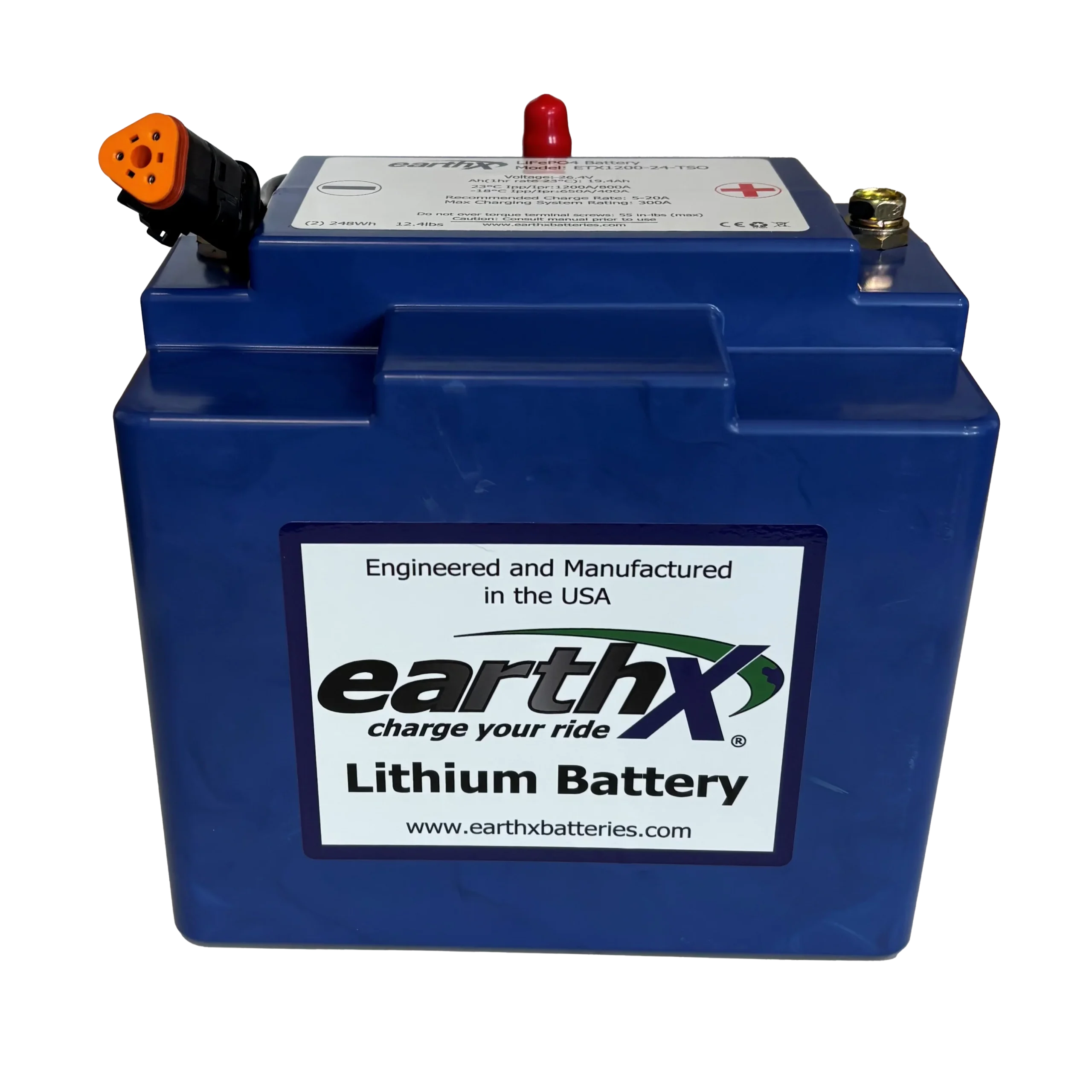

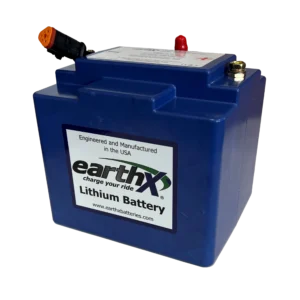

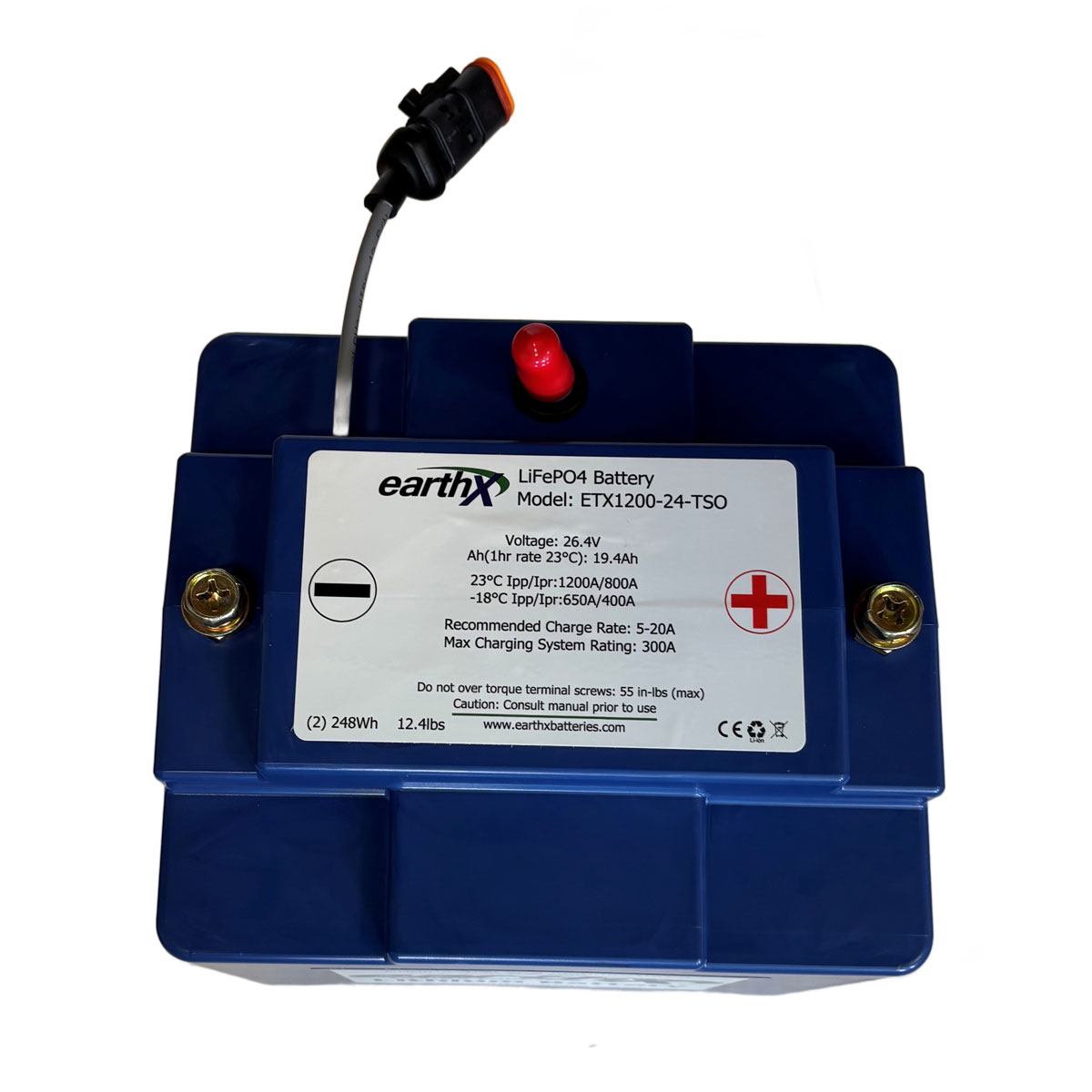

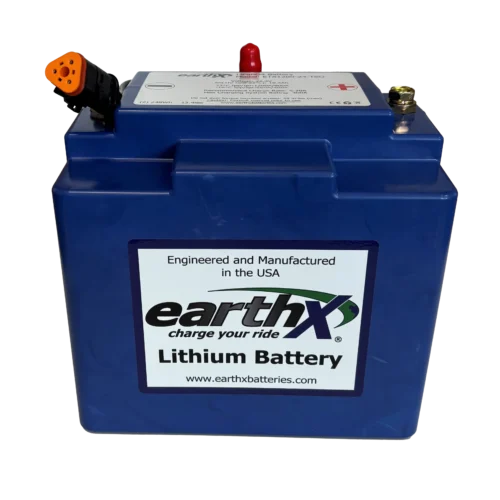

ETX1200-24-TSO (24V FAA Approved for GA Aircraft)

$2,999.00

COMING SOON!

FAA TSO approved 24-volt turbine/turbo prop starter battery.

Please note:

  • If you live outside the USA or Canada, email us with your full address at orders@earthxbatteries.com for a shipping quote.
  • Due to shipping regulations, this battery does ship as dangerous goods.
  • If this is an international order and you require an 8130-3 form, the cost is $150 per serial number product.

Available on backorder

SPECIFICATIONS

SKU: ETX1200-24-TSO
Voltage: 26.4
Weight: 12.4 (lbs) (5.6 (Kg))
Cold Cranking Amps (CCA): 650
Peak Cranking Amps (PCA): 1200
Amp Hour (1C Rate): 19.4
Chemistry: LiFePo4
Case Size: T
Dimensions: 7.3" L x 6.4" W x 6.6" H
                    (185mm L x 162mm W x 168mm H)

Please note:


COMING SOON!

This FAA TSO  battery is designed to start TURBINE/TURBO PROP engines with max motor/generator output of 300 amps or less.

This battery is a beast in a light package! The ETX1200-24-TSO is a 19.4Ah battery and weighs only 12.4lbs while having insane cranking power!

Contact us prior to buying if your motor/generator is more than 300 amps to verify the proper batteries needed for your TURBINE application, call 970.674.8884 option 1, or techsupport@earthxbatteries.com.

This battery is fully protected by an integrated battery management system (BMS). The BMS protects the cell’s from over discharge, over charge, short circuit, temperature, plus cell balancing to ensure charge levels are equal. Additionally, the ETX-Hundred Series aircraft batteries have redundant electronic circuits and battery fault indication. The fault indicator can be connected into your EFIS or wired to a 24volt LED light on your control panel to alert you to the state of charge and state of health of the battery. (Please see manual for details)

In addition to the BMS, this battery has thermal runaway containment and venting ability. This is designed to meet all of the DO-311a and DO-160 requirements for a lithium battery in aircraft.

EarthX is USA based engineering and manufacturing company dedicated to continuous improvements to bring you the best possible battery.

   Click here to download the Product Manual

   Click here to download the Instructions for Continued Airworthiness (ICA)

   Click here to download the Top Level Assembly
