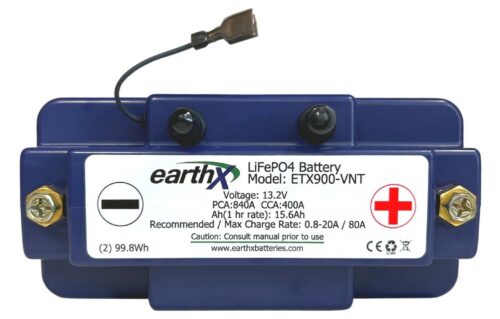

Voltage: 13.2
Weight: 5.4lbs (2.4kg)
Cold Cranking Amps (CCA): 400
Peak Cranking Amps (PCA): 840
Amp Hour (1C Rate): 15.6
Chemistry: Lithium Iron Phosphate (LiFePO4)
Case Size: E
Dimensions: 6.5" L x 3" W x 6.6" H
                    (166mm L x 76mm W x 168mm H)

Please note:

This battery is based on the ETX900 design with the same cranking, capacity and electronic protections (BMS) but also has the addition of built in thermal runaway containment and venting for in cabin installation. It can be used in an aircraft that has an alternator/generator with 80 amps output or less and smaller than 550ci. The ETX900-VNT meets all of the DO-311a lithium battery use in aircraft testing requirements. This is not a TSO or PMA part number.

This battery also comes with an LED battery fault light indicator on the battery itself plus it can be programed into your EFIS or wired to your control panel of your aircraft with a simple 12V LED light that alerts you to the state of charge and state of health of the battery (Please see manual for details). The ETX-Series battery management system (BMS) protects the cells from over discharge, over charge, short circuit, heat (excessive cranking), and have built in cell balancing technology. Plus these protections are redundant for another layer of protection.

What’s included:

  • 1 x ETX900-VNT
  • 2 x 6mm screws
  • 2 x elbows for tubing
  • Foam for proper fitment

Tubing & LED fault light sold separately.

1/4″ Vent Tubing – EarthX Batteries

12V-5mm LED Fault Light Panel Mount Indicator for EarthX batteries

EarthX is USA based engineering and manufacturing company dedicated to continuous improvements to bring you the best possible battery.

   Click here to download the Product Specification Sheet

   Click here to download the EarthX Battery Manual

   Click here to download the LED Indicator Quick Reference
